PACKAGING

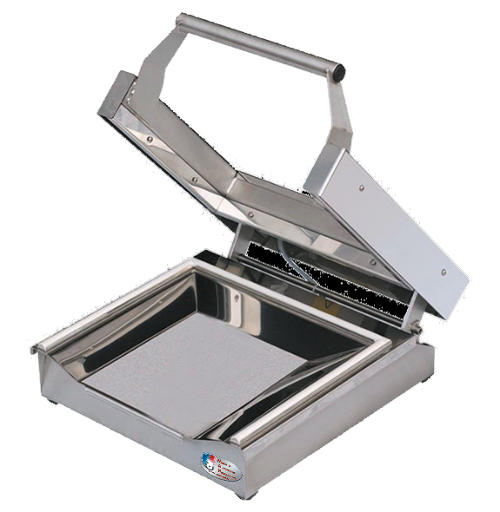

Paper sealer MOD. SOUD-350

Operculeuse à barquettes MOD. OP INOX 150

Click on the picture to enlarge

+ All stainless steel food stamped + Application in butchery, delicatessen, cheese factory, fishmonger ... • AISI 304 stainless steel paper sealer. • Stainless steel tray for cleaning ease. • Raising of the damped welding arm. • Wide welds for better sealing of the packaging. • Anti-slip feet. • On / off by illuminated push button IP 65. SOUD 350 WELDER DIMENSIONS (L x W x H) 330 x 495 x 425 mm CAPACITY (L x W) 300 x 250 mm LAIZE PAPER 350 mm MAXI VOLTAGE / POWER WEIGHT 350 mm 230 V / 150 W 8.5 kg

Click on the picture to enlarge

+ All stainless steel food stamped + Application in butchery, delicatessen, cheese factory, fishmonger ... + Designed for trapping trays of 180g to 2kg + Delivered with adjustable doublebarrel matrix patented • Tray sealer with stainless steel AISI 304 trays. • Adjustable aluminum matrix in formats: 195 x 140 mm and 140 x 96 mm / depth maximum: 105 mm. • Optional dice: "club sandwich" or 3 pots (consult us). • Removable reel unwinder with integrated cutting system. • Assisted opening with cylinders. • Anti-slip feet. • On / off by illuminated push button IP 65. OP INOX 150 OPERATOR DIMENSIONS (L x W x H) 550 x 230 x 210 mm MAXI TRAY (L x W) 195 x 150 mm MAXI COIL (L x Ø) 50 x Ø 200 mm VOLTAGE / POWER WEIGHT 230 V / 350 W 10.5 kg

Tray sealer MOD. OP INOX 200

Click on the picture to enlarge

+ Designed for sealing trays to GN 1/4 + Supplied with double impression matrix + Lever to extract easily trays • Tray sealer with stainless steel AISI 304 trays. • Double impression aluminum matrix: 195 x 140 mm and 140 x 96 mm or 195 x 140 mm double / maximum depth 105 mm. • Option matrices GN 1/4 maxi or other, consult us. • Removable reel unwinder with integrated cutting system. • Lever for easy extraction trays. • Assisted opening with cylinders. • Anti-slip feet. • On / off by illuminated push button IP 65. OP INOX 200 OPERATOR DIMENSIONS (L x W x H) 600 x 300 x 250 mm MAXI TRAY (L x W) 265 x 190 mm (GN 1/4) MAXI COIL (L x Ø) 200 x Ø 200 mm VOLTAGE / POWER WEIGHT 230 V / 500 W 16 kg

Tray sealer MOD. OP GN1/2

Click on the picture to enlarge

+ Designed for small and medium production + Capacity up to GN 1/2 + Delivered with matrix to choose among the list • Tray sealer with stainless steel AISI 304 trays. • Matrix aluminum formats to choose from: either GN 1/2 or matrix 2 prints 195 x 140 mm, or matrix 6 prints 140 x 96 mm / maximum depth: 120 mm. • Other matrices possible, consult us. • Front coil reel with system cutting. • Assisted opening with cylinders. • Anti-slip feet. • Regulation with digital display of the heating and welding time. • On / off by illuminated push button IP 65. OP GN1 / 2 OPERATOR DIMENSIONS (L x W x H) 725 x 470 x 410 mm MAXI TRAY (L x W) 325 x 265 mm MAXI COIL (L x Ø) 365 x Ø 300 mm VOLTAGE / POWER WEIGHT 230 V / 1200 W 45 kg

Semi-automatic tray sealer MOD. OP MM 150 MULTIFORM 3 / OP MM 220 MULTIFORM 4 / OP MM 380 MULTIFORM 5

+ Tray sealers with semi-automatic trays with sliding drawer + Supplied with Multiform Adjustable Matrix + Designed for medium productions • Trays with sliding drawer coupled with film unwinding and cutting automatic / manual heat sealing. • AISI 304 stainless steel construction. • 1 matrix Multiform * included (other matrices possible, consult us). • Front coil reel with system automatic cutting. • Number of cycles per minute: 5 to 8. • Anti-slip feet. • Regulation with display of the heating temperature and time of solder with 5 programs. • Audible alarm at the end of the cycle. • Power supply MONOPHASE 230 V.

Click on the picture to enlarge

Semi-automatic tray sealer MOD. OP MA 150 MULTIFORM 3 / OP MA 220 MULTIFORM 4 / OP MA 380 MULTIFORM 5

Click on the picture to enlarge

+ Trays with automatic trays with sliding drawer + Supplied with Multiform Adjustable Matrix + Designed for superior productions • Trays with sliding drawer coupled with unwinding of the film and automatic cutting / heat sealing automatic. • AISI 304 stainless steel construction. • 1 matrix Multiform * included (other matrices possible, consult us). • Front coil reel with system automatic cutting. • Number of cycles per minute: 5 to 8. • Anti-slip feet. • Regulation with display of the heating temperature and time of solder with 9 programs. • Audible alarm at the end of the cycle. • Power supply MONOPHASE 230 V.

TECHNICAL CHARACTERISTICS: CONSULT US

VACUUM MACHINES

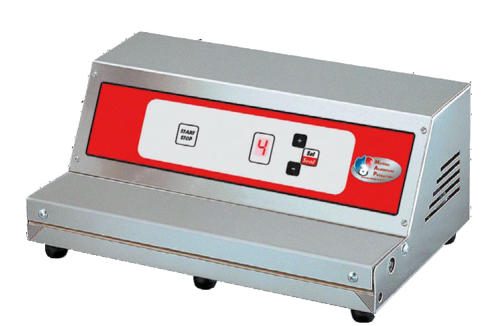

VACUUM MACHINE EXTERNAL ASPIRATION MOD. MAP AE 400 LCD / MAP AE 380 DIGIT

Click on the picture to enlarge

+ Robust stainless steel machines + Minimal space requirement • AISI 304 stainless steel construction. • Works only with bags embossed. • Anti-slip feet. • Model 380 DIGIT with digital operation. • LCD 400 LCD model with 5 memorizable programs. • Handle of manipulation on model 400 LCD. • Suction filter model 400 LCD. • 230 V MONOPHASE power supply

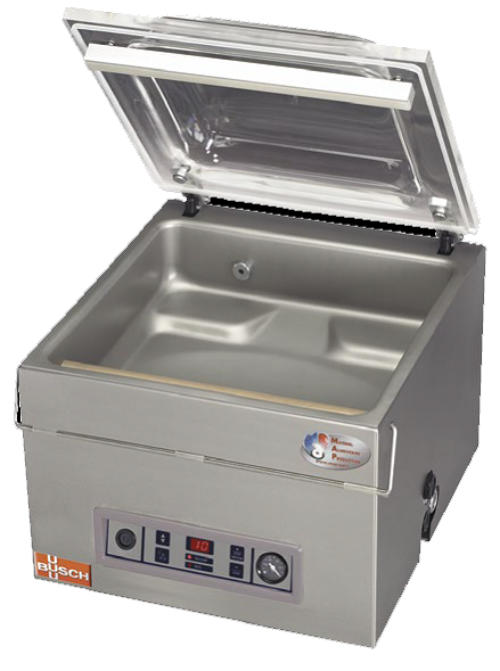

VACUUM MACHINE ADJUSTED BY% VACUUM MOD.MINI ACT / ACT 350 / ACT 420 / ACT 420 XL

Click on the picture to enlarge

+ Extended DLC + High-end construction all stainless steel, tank pressed + Ultra-precise vacuum adjustment in% (sensor) • Body and pressed tub all stainless steel. • Clear opening bell automatic by cylinders. • BUSCH high-end vacuum pump. • Removable "wireless" solder bar with double filament. • Empty setting in%, and welding in 1 / 10th second. • Evaporation function of moisture for preserve the pump. • Progressive atmosphere reset as standard. • Hours counter, LED of oil and integrated technical diagnosis. • Connection planned for suction kit GN trays (optional). • 230 V MONOPHASE power supply

TECHNICAL CHARACTERISTICS: CONSULT US

VACUUM MACHINE ADJUSTED BY% VACUUM MOD.ACT PLUS 420 / ACT PLUS 420 XL / ACT PLUS 620 XL ACT PLUS D410 XL

Click on the picture to enlarge

+ Optimal application of HACCP rules / Extended DLC + High-end construction all stainless steel, tank pressed + Ultra-precise vacuum adjustment in% (sensor) • Body and pressed tub all stainless steel. • Clear opening bell automatic by cylinders. • BUSCH high-end vacuum pump. • Removable "wireless" solder bar with double filament. • Digital controls. • Vacuum setting in% or mbar, welding to 1 / 10th of a second and 10 programs in memory. • Evaporation function of moisture for preserve the pump. • Reinstatement in a progressive atmosphere configurable as standard. • Hours counter, LED of oil and integrated technical diagnosis. • Connection planned for suction kit GN trays (optional). • 230 V MONOPHASE power supply

INTEGRATED FUNCTION

RED MEAT

VACUUM MACHINE EVOLUTOP MOD.EVOLUTOP 320 / EVOLUTOP 420

OPTIONAL PRINTER

+ Optimal traceability with printing customizable labels + Strict application of HACCP rules + High-end construction with bedroom flat all stainless • Body and flat chamber all stainless steel. • Opening polycarbonate bell automatic by cylinders. • BUSCH high-end vacuum pump. • Removable "wireless" solder bar with double filament. • Intuitive LCD color display controls. • Vacuum setting in% or mbar, weld at 1 / 10th of a second and 21 programs. • USB port for connecting to the printer or data transfer (multiple labels printable at each cycle). • Evaporation function of moisture for preserve the pump. • Reinstatement in a progressive atmosphere configurable as standard. • Hours counter, LED of oil and integrated technical diagnosis. • Recording of maintenance data and Operating. • 230 V MONOPHASE power supply

INTEGRATED FUNCTION

RED MEAT

MARINADES

TECHNICAL CHARACTERISTICS: CONSULT US

Click on the picture to enlarge

VACUUM MACHINE PRINT MOD.ACT PLUS 420 PRINT / ACT PLUS 420 XLPRINT ACT PLUS 620 XL PRINT / ACT D410 XL PRINT

+ Optimal traceability with printing customizable labels + Strict application of HACCP rules + High-end construction all stainless steel, tank pressed • Body and pressed tub all stainless steel. • Clear opening bell automatic by cylinders. • BUSCH high-end vacuum pump. • Removable "wireless" solder bar with double filament. • Intuitive LCD color display controls. • Vacuum setting in% or mbar, weld at 1 / 10th of a second and 21 programs. • USB port for connecting to the printer or data transfer (multiple labels printable at each cycle). • Evaporation function of moisture for preserve the pump. • Reinstatement in a progressive atmosphere configurable as standard. • Hours counter, LED of oil and integrated technical diagnosis. • Recording of maintenance data and Operating. • 230 V MONOPHASE power supply

Click on the picture to enlarge

NTEGRATED FUNCTION

RED MEAT

MARINADES

VERTICAL VACUUM MACHINE MOD.ACT V 420 / ACT V 420 MATRICE

Click on the picture to enlarge

+ Ideal conservation system for vertical packaging + Designed for vacuuming liquids, olives, powders ... + Available with adjustable platform or with custom clamping die • Body and pressed tub all stainless steel. • Clear opening bell automatic. • BUSCH high-end vacuum pump. • Removable solder bar "wireless" with double filaments (welding / cutting in option). • Vacuum and weld adjustment by the time with 10 programs as standard. • Evaporation function of moisture for preserve the pump. • Progressive atmosphere reset as standard. • Hours counter, diagnosis integrated technology, and oil indicator for drain. • Power supply: MONOPHASE 230 V

TECHNICAL CHARACTERISTICS: CONSULT US

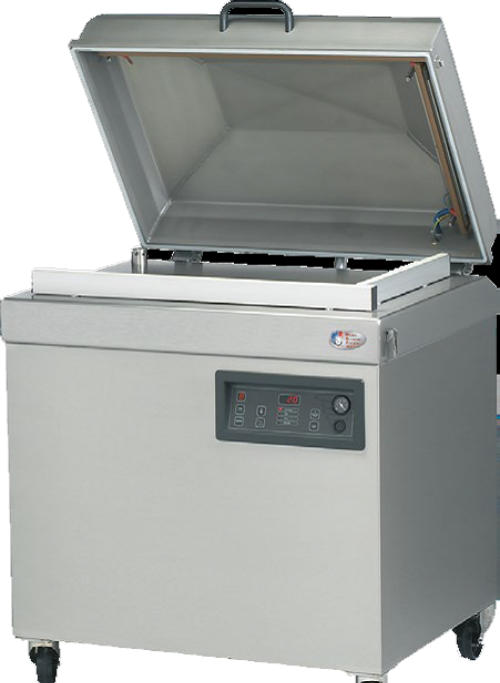

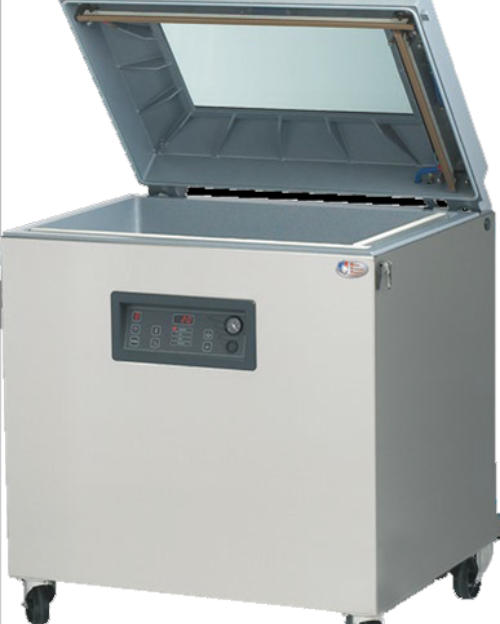

SEMI-INDUSTRIAL VACUUM MACHINE MOD.F 520 / F 800 ECO / F 800

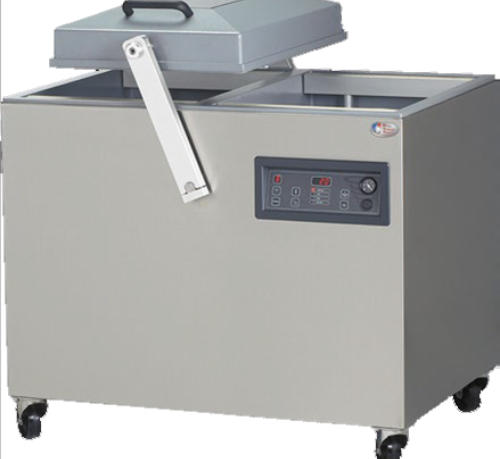

SEMI-INDUSTRIAL VACUUM MACHINE MOD.ACS 2-580 / ACS 2-700

+ Optimal application of HACCP rules / Extended DLC + Aluminum bell with safety glazing • Body all stainless steel. • Bowl and bell in coated aluminum dietary epoxy. • Bell with safety glazing allowing visualize the cycle. • Automatic opening by cylinders. • Stainless steel base on wheels with brakes. • BUSCH high-end vacuum pump. • Double weld bars filaments mounted in the bell (welding / cutting optional). • Vacuum and weld adjustment by the time with 10 programs as standard. • Evaporation function of moisture for preserve the pump. • Hours counter, diagnosis integrated technology, and oil indicator for drain. • Power supply: THREE PHASE 380 V (others consult us).

Click on the picture to enlarge

+ Optimal application of HACCP rules / Extended DLC + Machines with double aluminum chambers, bell with safety glazing • Body all stainless steel. • Bowls and bell in coated aluminum dietary epoxy. • Bell with safety glazing allowing visualize the cycle. • Automatic opening of the bell by against pressure. • Stainless steel base on wheels with brakes. • BUSCH high-end vacuum pump. • Double weld bars filaments mounted in the bell (welding / cutting optional). • Vacuum and weld adjustment by the time with 10 programs as standard. • Evaporation function of moisture for preserve the pump. • Hours counter, diagnosis integrated technology, and oil indicator for drain. • Power supply: THREE PHASE 380 V (others consult us).

TECHNICAL CHARACTERISTICS: CONSULT US

Click on the picture to enlarge

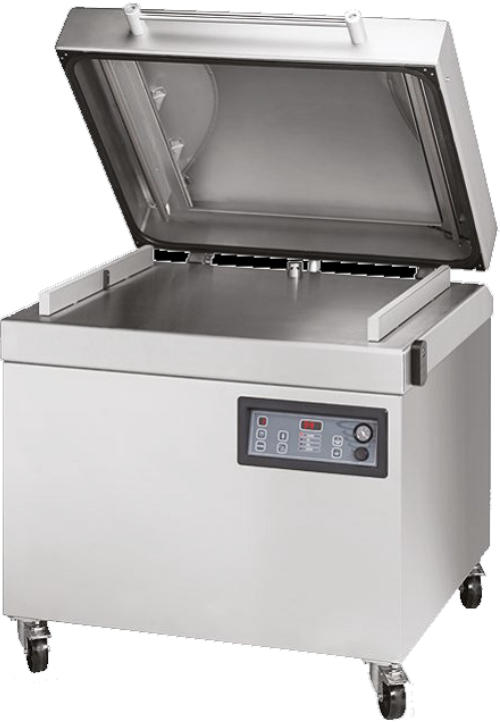

INDUSTRIAL VACUUM MACHINE MOD.ACS P 520 / ACS P 800 / ACS P 1100

Click on the picture to enlarge

+ Stainless steel flat table benchmark machines industrial environment + High-end stainless steel construction, including included bell + IP 65 command protection • All stainless steel construction with base on wheels with brakes. • Stainless steel flat table with removable counterbars. • Bell made entirely of stainless steel. • Automatic opening of the bell by cylinders. • BUSCH high-end vacuum pump. • Double weld bars filaments mounted in the bell (optional soldering / breaking). • Vacuum and weld adjustment over time with 10 programs as standard. • Evaporation function of moisture to preserve the pump. • Progressive atmosphere reset as standard. • Hours counter, diagnosis integrated technology, and oil indicator for emptying. • Power supply: THREE PHASE 380 V (others please consult us).

INDUSTRIAL VACUUM MACHINE MOD.ACS PA 880

Click on the picture to enlarge

+ Stainless steel flat table benchmark machines industrial environment + High-end stainless steel construction, including included bell + IP 65 command protection • All stainless steel construction with base on casters with brakes. • Stainless steel flat table with counter bars removable. • Bell made entirely of stainless steel. • Automatic opening of the bell. • Elmo high-end vacuum pump Rietschle. • Double weld bars filaments mounted in the bell (welding / cutting optional). • Vacuum and weld adjustment by the time with 10 programs as standard. • Evaporation function of moisture for preserve the pump. • Hours counter, diagnosis integrated technology, and oil indicator for drain. • Power supply: THREE PHASE 380 V (others consult us).

TECHNICAL CHARACTERISTICS: CONSULT US

INDUSTRIAL VACUUM MACHINE MOD.ACS P 2-500 / ACS P 2-750

+ Stainless steel flat table benchmark machines industrial environment + High-end stainless steel construction, including included bell + IP 65 command protection • All stainless steel construction with base on casters with brakes. • Stainless steel flat table with counter bars removable. • Tilting bell with integral handle all stainless steel. • Automatic opening of the bell by against pressure. • BUSCH high-end vacuum pump. • Double weld bars filaments mounted in the bell (welding / cutting optional). • Vacuum and weld adjustment by the time with 10 programs as standard. • Evaporation function of moisture for preserve the pump. • Progressive atmosphere reset as standard. • Hours counter, diagnosis integrated technology, and oil indicator for drain. • Power supply: THREE PHASE 380 V (others consult us).

Click on the picture to enlarge

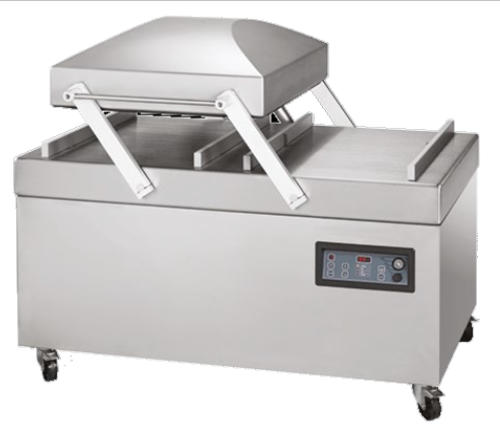

INDUSTRIAL VACUUM MACHINE MOD.ACS PA 2-760 / ACS PA 2-870

Click on the picture to enlarge

+ Stainless steel flat table benchmark machines industrial environment + High-end stainless steel construction, including included bell + IP 65 command protection • All stainless steel construction with base on casters with brakes. • Stainless steel flat table with counter bars removable. • Tilting bell with integral handle. • Automatic opening of the bell. • Elmo high-end vacuum pump Rietschle. • Double weld bars filaments mounted in the bell (welding / cutting optional). • Vacuum and weld adjustment by the time with 10 programs as standard. • Evaporation function of moisture for preserve the pump. • Hours counter, diagnosis integrated technology, and oil indicator for drain. • Power supply: THREE PHASE 380 V (others consult us).

TECHNICAL CHARACTERISTICS: CONSULT US

INDUSTRIAL VACUUM MACHINE MOD.ACS P 2-850 / ACS P 2-950

Click on the picture to enlarge

+ Stainless steel flat table benchmark machines industrial environment + High-end stainless steel construction, including included bell + IP 65 command protection • All stainless steel construction with base on casters with brakes. • Stainless steel flat table with counter bars removable. • Tilting bell with integral handle. • Automatic opening of the bell. • Elmo high-end vacuum pump Rietschle. • Double weld bars filaments mounted in the bell (welding / cutting optional). • Vacuum and weld adjustment by the time with 10 programs as standard. • Evaporation function of moisture for preserve the pump. • Hours counter, diagnosis integrated technology, and oil indicator for drain. • Power supply: THREE PHASE 380 V (others consult us).

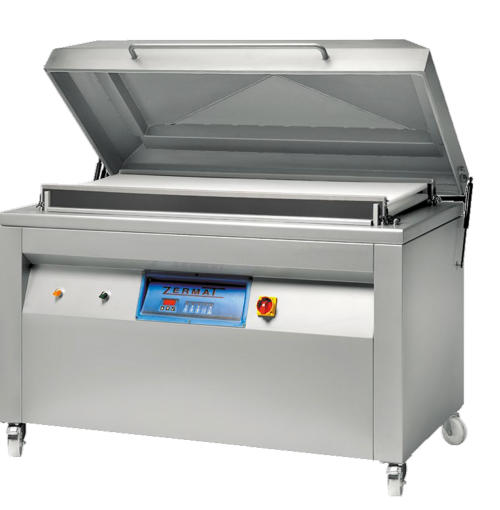

AUTOMATIC INDUSTRIAL VACUUM MACHINE MOD.CV 1000 + / CV 1000 PRO / CV 1400

Click on the picture to enlarge

+ Tilt machine lid automatic + High-end stainless steel construction + Controls with color LCD screen IP 65 protected • All stainless steel construction with base on casters with brakes. • Stainless steel flat table with counter bars removable. • Bell tilting automatically, except CV 1400. • BUSCH high-end vacuum pump. • Double weld bars filaments mounted in the bell (welding / cutting optional). • Intuitive controls with LCD display color icons. • Vacuum setting in% or mbar, welding at 1 / 10th of a second, and 21 programs customizable. • Progressive atmosphere reset as standard. • Hours counter, diagnosis integrated technology, and oil indicator for drain. • Power supply: THREE PHASE 380 V. • Compressed air supply: Tube Ø 8 x 6 mm, minimum pressure 6 bar - Consumption: 30 liters / cycle.

VIDEO DEMONSTRATION

TECHNICAL CHARACTERISTICS: CONSULT US

AUTOMATIC DRYING TUNNEL MOD.DR 1

Click on the picture to enlarge

+ Ideal for drying bags before they are put cardboard-based + Go on line with shrink tray automatic with ejection conveyor + Continuous operation by airflow laminar • All stainless steel body with pedestal on feet adjustable. • Stainless steel bowl. • Drying by laminar airflow to ambient temperature: do not heat up the atmosphere of the laboratory. • Conveyor continuously, drying and ejection bags to storage bin (speed variable optional). • Electromechanical controls for a simple operation. • Power supply: THREE PHASE 380 V.

AUTOMATIC RETRACTION BOX MOD.TR 8 A / TR 10

Click on the picture to enlarge

+ Put on line with vacuum machines automatic with ejection conveyor + Automatic sensor detection of bags arriving at the ferry + Descent / immersion and ejection automatic retracted bags • All stainless steel body with pedestal on feet adjustable. • Stainless steel tank and platform. • TR 8 A: pneumatic downhill system bags, retraction and ejection of bags by tilting platform at the exit. • TR 10: continuous conveyor of bags, Retraction and ejection of retracted bags to dryer, or in-line conveyor, or bin storage. • Floating structure to prevent evaporation and save energy. • Temperature and humidity controls immersion timer with displays digital. • Power supply: THREE PHASE 380 V. • Compressed air supply: Tube Ø 8 x 6 mm, minimum pressure 6 bar - Consumption: 2.4 liters / cycle. • Steam extraction Ø 150 mm to be connected outside.

VIDEO DEMONSTRATION
